Various Colour Coated Aluminum Coil / Aluminium Composite Sheet
5000 Kg
Remarks :
1 . The alloy , temper & size can be negotiated by buyer and seller
2 , Width can be 50 ~ 800mm as per customer's requirement.
Coating Characteristic Table
| Inspection items | Coating Types |
| PVDF | PE | Ceiling Top Lacquer |
| No natural clear lacquer | With natural clear lacquer |
| Coating Thickness | 26 + /-1 | 18 + / - 1 | 20 + / - 1 | |
| Glossy Tolerance | 60O glossy value ≥ 80 unit , tolerance + / - 10 unit | glossy value ≥ 80 unit , tolerance + / - 10unit |
| 60O glossy value ≥ 20 ~ 80 unit , tolerance + / - 7 unit | glossy value≥20 ~ 80 unit , tolerance + / - 7 unit |
| 60O glossy value >20 unit , tolerance + / - 5unit | 60O glossy value >20 unit , tolerance + / - 5unit |
| Pencil Hardness | ≥ IH | ≥ 2H | ≥2H |
| Flexible | ≤2T | ≤3T | ≤2T |
| Impact Resistance | No failing , No crack | No failing , No crack |
| Adhesive Quality | 0 grade and 1 grade | 0 grade and 1 grade |
| Acid Resistance | No Change | Coating no change |
| Alkalistability | No change | - |
| Solventresistance | Bottom not appearance after 100 times | Bottom not appearance after 100 times | Bottom not appearance after 100 times | Bottom not appearance after 100 times |
| Color Difference | The coating color is almost same as confirmed by buyer and seller ,
the color difference tested by colorimeter between single coating
and sample is less tan 1.2 , same lot products color difference |

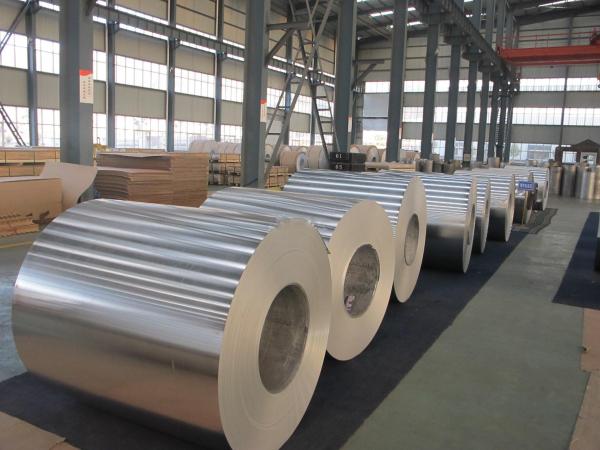

Introduction of Products
Aluminum Color Coated Coil produced by nice coated equipment,
advantaged technology , coated by various
color and different thickness , appearance colorful and shining
products.
The products mainly used to produce aluminum composite panels ,
aluminum single sheet, aluminum beehive
sheets, veined coating aluminum coil and mainly used in aluminum
rooler shutter and roller blinds , aluminum
ceiling , aluminum door and widows, scan sign , decorating car ,
boat , aluminum container, home appliances ,
kitchen ware and cabinet, control panel , light - fixture ,
furniture sun power reflector panel and so on .
Characteristics
Cood Weathering : Choosing different coating materials as per using environment, the
coating is hardness
and slick , ater - resistance , sovle - resistance , anti-washing ,
long ages, Especially for PVDF materials , it
has good weather resistance to use for decorating wall and special
place for more than 20 years under bad
whether .
Colorful : Different materials and color appearances top grade floweriness
.
Recycling : it can be recycling , no depreciation , high.
Saving energy : aluminum is containing electric and energy itself , 95 % can be
recycled used, less
depreciation.
Order Procedure
Color Comfirmation
Customer provides sample or color card and code -- Painter matches
the color as per the sample -- Coating
and getting sampl -- Customer confirms the sample
Mill Finish Aluminum Coil comfirmation
Customer provides technical standard --- Technology confirms to
meet the technical requirement
Above two confirmed , arranging production as per order
